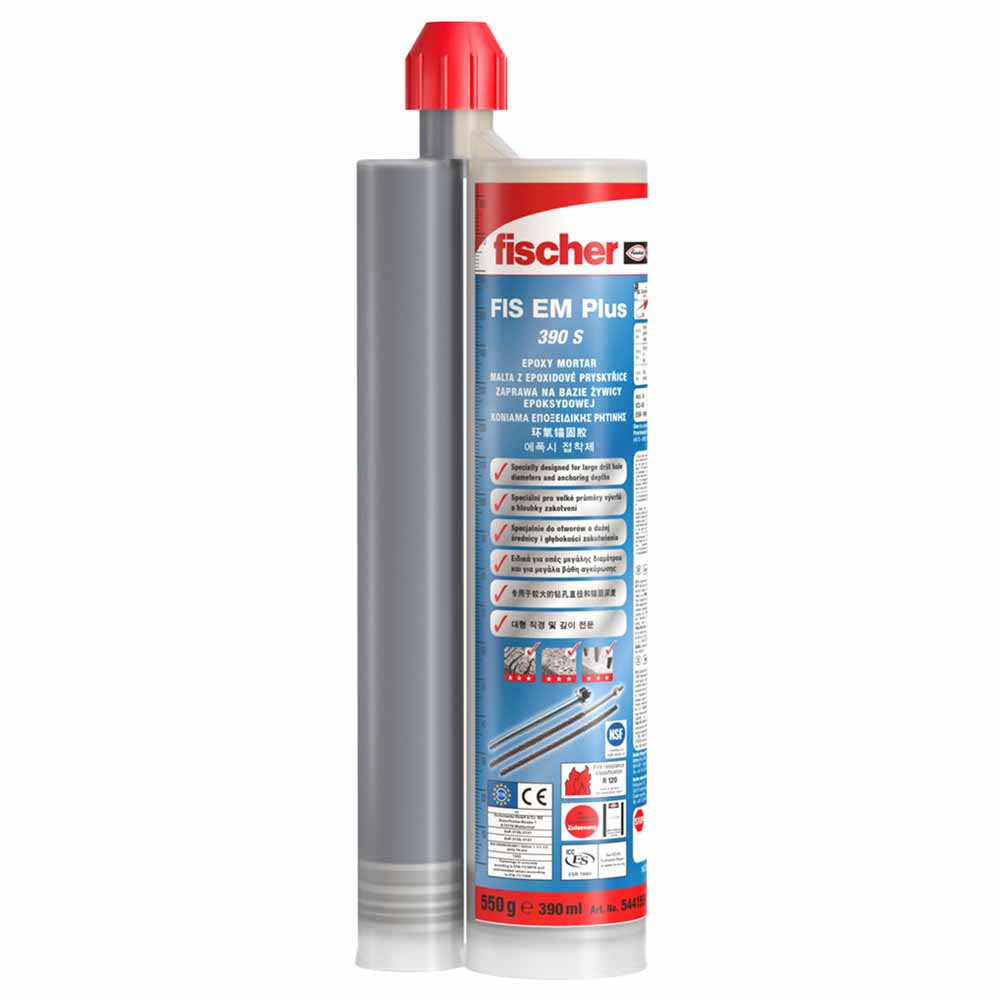

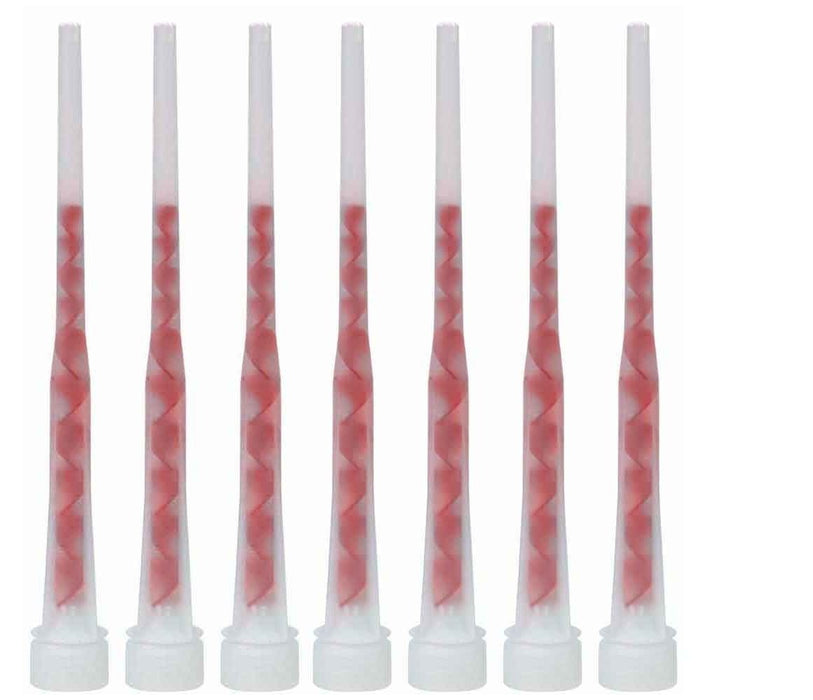

FISCHER FIS EM PLUS 390 + NOZZLE
1. Product Description
FIS EM 390 Plus is a high-performance, two-component epoxy resin injection mortar designed for use in structural connections, rebar anchoring, and heavy-duty fastening applications in cracked and non-cracked concrete. The system is suitable for demanding environments including seismic zones and aggressive conditions (e.g. marine and industrial exposure).
2. Applications
- Post-installed rebar connections (reinforcement anchoring)
- Heavy-duty anchoring in concrete (C20/25 to C50/60)
- Anchoring in dry, wet, water-filled, and diamond-drilled holes
- Seismic categories C1 and C2
- Use in indoor and outdoor zones, including marine (C5) and industrial environments
3. Approvals & Standards
- ETA-17/0918 – European Technical Assessment
- ETAG 001, TR023 compliant
- Seismic qualified: Categories C1 and C2
- VOC emissions: A+ rating (low emissions)
- Complies with NZ Building Code Clauses B1 (Structure) and B2 (Durability) when designed correctly
4. Technical Properties
|
Property |
Value |
|
Resin Type |
Epoxy (2-part) |
|
Colour |
Grey |
|
Packaging |
390 ml coaxial cartridge |
|
Mixing Ratio |
3:1 |
|
Service Temperature (long term) |
-40°C to +72°C |
|
Installation Temperature Range |
+5°C to +30°C |
|
Working Time (at 20°C) |
~30 minutes |
|
Curing Time (at 20°C) |
~12 hours (fully cured) |
|
Compressive Strength |
~85 MPa |
|
Bond Strength |
> 15 MPa |
|
Shelf Life |
24 months (unopened, dry storage) |
5. Installation Instructions
- Drill the hole to the specified diameter and depth
- Blow the hole clean with a blower or compressed air
- Brush with a steel brush to remove dust
- Blow again to ensure all dust is removed

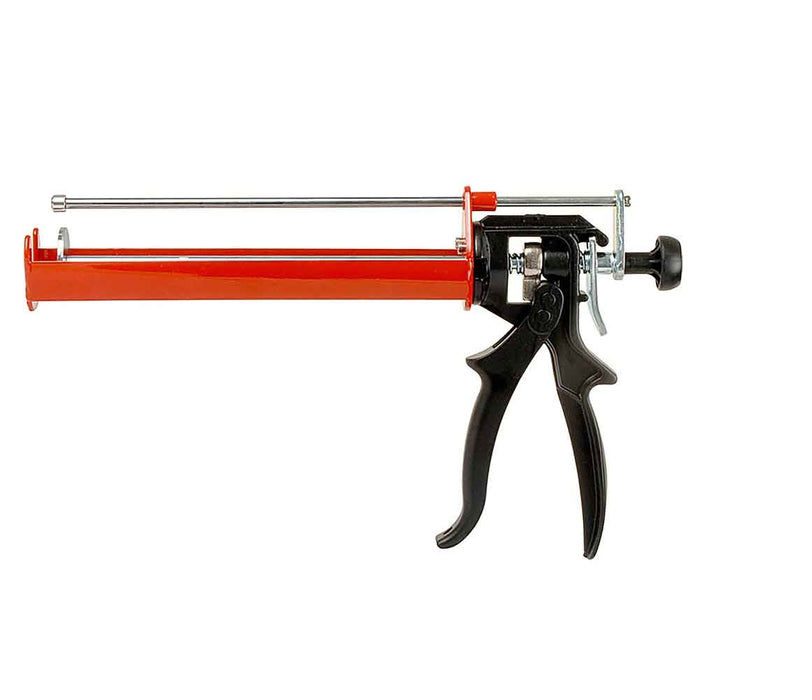

- Inject resin using a manual or battery dispenser – discard first 10 cm of unmixed material
- Insert anchor rod or rebar slowly with a twisting motion
- Allow to cure based on ambient temperature before loading
6. Compatible Accessories
- Fischer FIS A threaded rod
- Fischer RG M I internally threaded sleeves
- Standard rebar (B500B or similar)
- Blow-out pumps, hole brushes, dispensers
7. Storage & Safety
- Store in a cool, dry place (5–25°C)
- Protect from direct sunlight and frost
- Refer to SDS (Safety Data Sheet) for handling, PPE, and first aid guidelines
8. Environmental Resistance
- Highly chemical resistant
- Suitable for use in aggressive atmospheres and submerged applications
- UV-resistant with correct installation method
